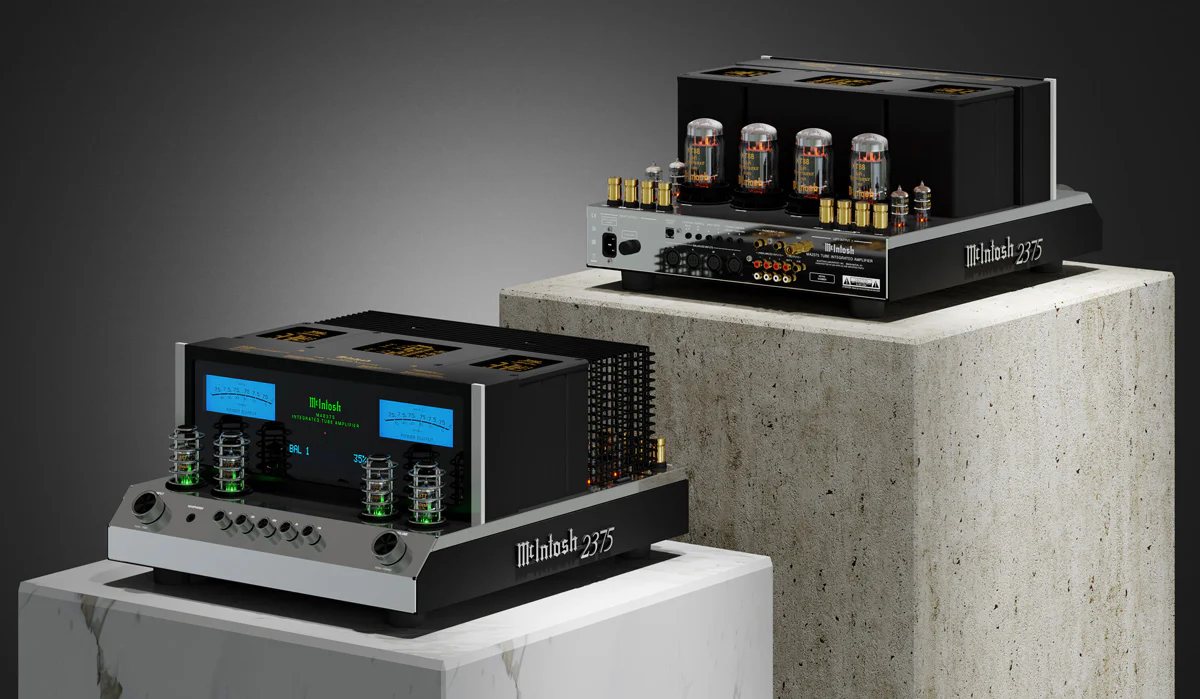

MA2375
Vacuum Tube Integrated Amplifier
An all-analog instrument — a vacuum tube preamplifier and vacuum tube power amplifier on a single polished chassis. We specify and install it for clients who want music reproduced exactly as it was recorded, with nothing in the way.
Pure tube artistry,
from input to output
In the power amplifier section, four KT88 output tubes and four 12AT7 driver tubes deliver 75 watts per channel of effortless, low-distortion power.
McIntosh's Unity Coupled Circuit Output Transformers carry that power cleanly to virtually any loudspeaker we pair it with. The preamplifier section runs on two 12AX7A and two 12AT7 tubes — a fully analog signal path, with nothing digital between the recording and the room.
The signature glow.
The unmistakable blue.
Dual McIntosh blue watt meters, a polished stainless-steel chassis, and the warm light of vacuum tubes — an object as composed as the sound it makes.
A 5-band analog equalizer allows precise tonal shaping, and the High Drive headphone amplifier with Headphone Crossfeed Director (HXD®) brings space and dimension to private, late-night listening.
Engineered to
protect itself
Power Guard Screen Grid Sensor® technology continuously monitors current and adjusts the input signal in real time to keep the KT88 output tubes within their ideal operating range — preserving both performance and tube life.
If current climbs too high, Power Guard SGS® gently attenuates the input signal rather than letting the tubes strain. Paired with fuse-less Sentry Monitor short-circuit protection, the MA2375 is built for years of untroubled listening — which is exactly what we look for before we put something in a client's home.
Built for a
complete system
Two balanced and three unbalanced inputs welcome streamers, CD players, tuners, and D/A converters. A configurable universal phono stage accommodates both Moving Coil and Moving Magnet cartridges, with adjustable gain, capacitance, resistance loading, and RIAA equalization for proper vinyl playback.

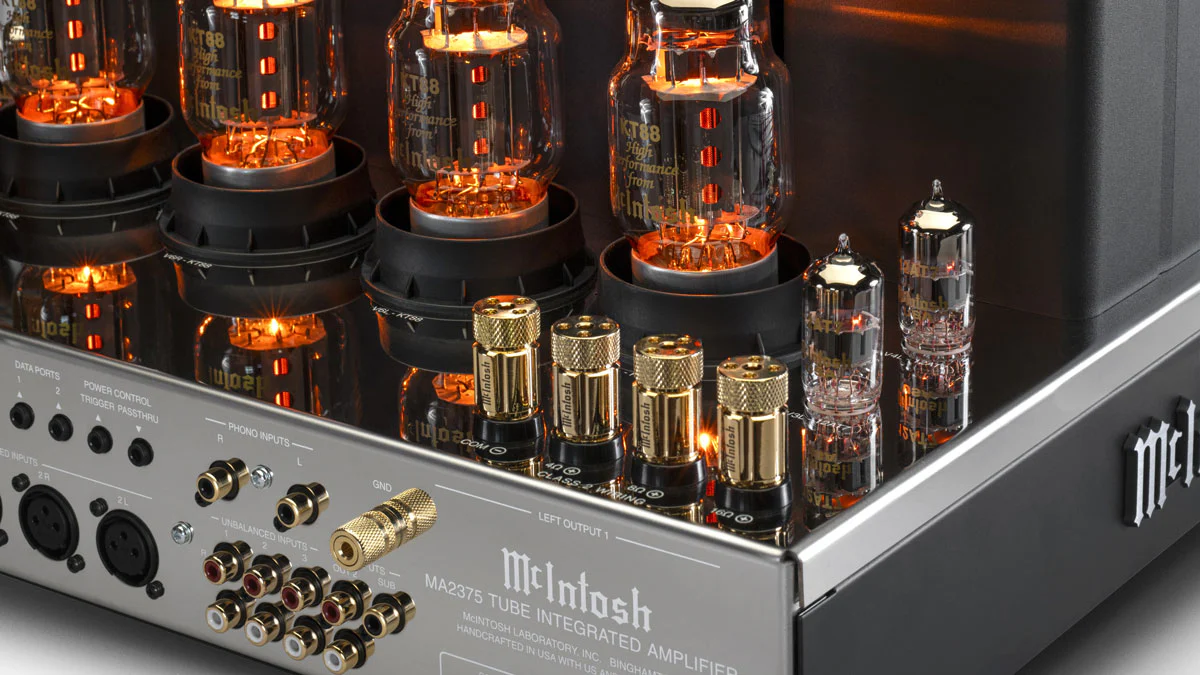

A subwoofer output extends low-frequency reach, gold-plated Solid Cinch binding posts secure your cables, and an unbalanced preamp output supports a second amplifier in a larger multi-zone design. Power Control, Home Theater PassThru, Data Ports, and RS232 let us integrate it cleanly into the rest of the home.
Every figure, measured and stated
- FTC Power Output Rating
- 75 W
- Power Output per Channel
- 75 W into 4, 8, or 16 ohms
- Number of Channels
- 2
- Rated Power Band
- 20Hz to 20kHz
- Total Harmonic Distortion
- 0.5% maximum, both channels operating, 250mW to rated power, 20Hz–20kHz
- Dynamic Headroom
- 1.2dB
- Frequency Response (+0, −0.5dB)
- 20Hz to 20kHz
- Frequency Response (+0, −3dB)
- 10Hz to 50kHz
- Sensitivity — Phono
- 3mV
- Sensitivity — High Level (Bal / Unbal)
- 600mV / 300mV
- S/N Ratio — Moving Coil
- 75dB
- S/N Ratio — Moving Magnet
- 75dB
- S/N Ratio — High Level
- 95dB
- Input Impedance (Bal / Unbal)
- 44K / 22K
- Phono Loading
- 100 – 47kΩ; 50 – 400pF
- Damping Factor
- >22
- Maximum Output (Bal / Unbal)
- 16V Balanced / 8V Unbalanced
- Balanced Input
- 2
- Unbalanced Input
- 3
- Phono Input — Universal
- 1, configurable as Moving Coil or Moving Magnet
- Unbalanced Variable Output
- 1
- Headphone Output
- 1/4" High Drive with Headphone Crossfeed Director (HXD®)
- Subwoofer Output
- 1
- AM/FM Tuner Option
- No
- Home Theater PassThru
- Yes
- Unbalanced Connector Type
- Premium gold-plated solid brass
- Speaker Binding Posts
- Patented Solid Cinch Speaker Binding Posts
- Service Port
- 1
- Tone Controls
- 5-Band
- Tone Bypass and Input Assign
- Yes
- RS232 Control Input
- Yes
- Power Control Output
- 1
- Rear Panel Data Port
- 2
- Rear Panel IR Sensor Input
- Yes
- Input Level Match
- Yes
- Amplifier Type
- Vacuum Tube
- Output Type
- Unity Coupled Output Transformer
- Output Meters
- Yes
- Dual Layer Chassis
- Yes
- Chassis Finish
- Polished stainless steel
- Power Requirement
- 100V (4.4A) · 110/120V (3.6A) · 220V (2.0A) · 230/240V (1.8A), 50/60Hz
- Standby Power
- <0.25 Watts
- Unit Dimensions (W × H × D)
- 17-13/16" × 9-15/16" × 20-7/16" (45.2 × 25.2 × 51.9 cm)
- Unit Weight
- 93 lbs (42.2 kg)
- Shipping Dimensions (W × H × D)
- 23-1/4" × 14-1/2" × 25-1/4" (59.1 × 36.8 × 64.1 cm)
- Shipping Weight
- 103 lbs (46.7 kg)
Elevate every note
The MA2375 is best experienced in person. We'll arrange a private audition and design the system around it — speakers, sources, and room — so it performs the way McIntosh intended.
